Name: FISHER & PAYKEL SERIES 7 90CM PYRAMID CHIMNEY WALL CANOPY RANGEHOOD STAINLESS STEEL HC90PCX1
Availability: InStock

Description

Long have rangehoods been a utilitarian addition to the home, prized for their ability to vent smoke, steam, and odours from the kitchen. Revitalising the traditional design, Fisher & Paykel have imbued a touch of elegance into their Stainless Steel 90cm Pyramid Chimney Wall Rangehoods. Featuring a complementary design to match the stainless steel Classic Freestanding Cooker, the Pyramid Chimney Rangehood will add an undeniable style to your kitchen.

Offering premium performance, this rangehood is equipped with three fan speeds, controlled by the chrome touch buttons. Take advantage of the powerful 780m3/hr maximum airflow, removing cooking odours and grease through three stainless steel mesh filters.

Specifications & Manuals

SPECIFICATIONS

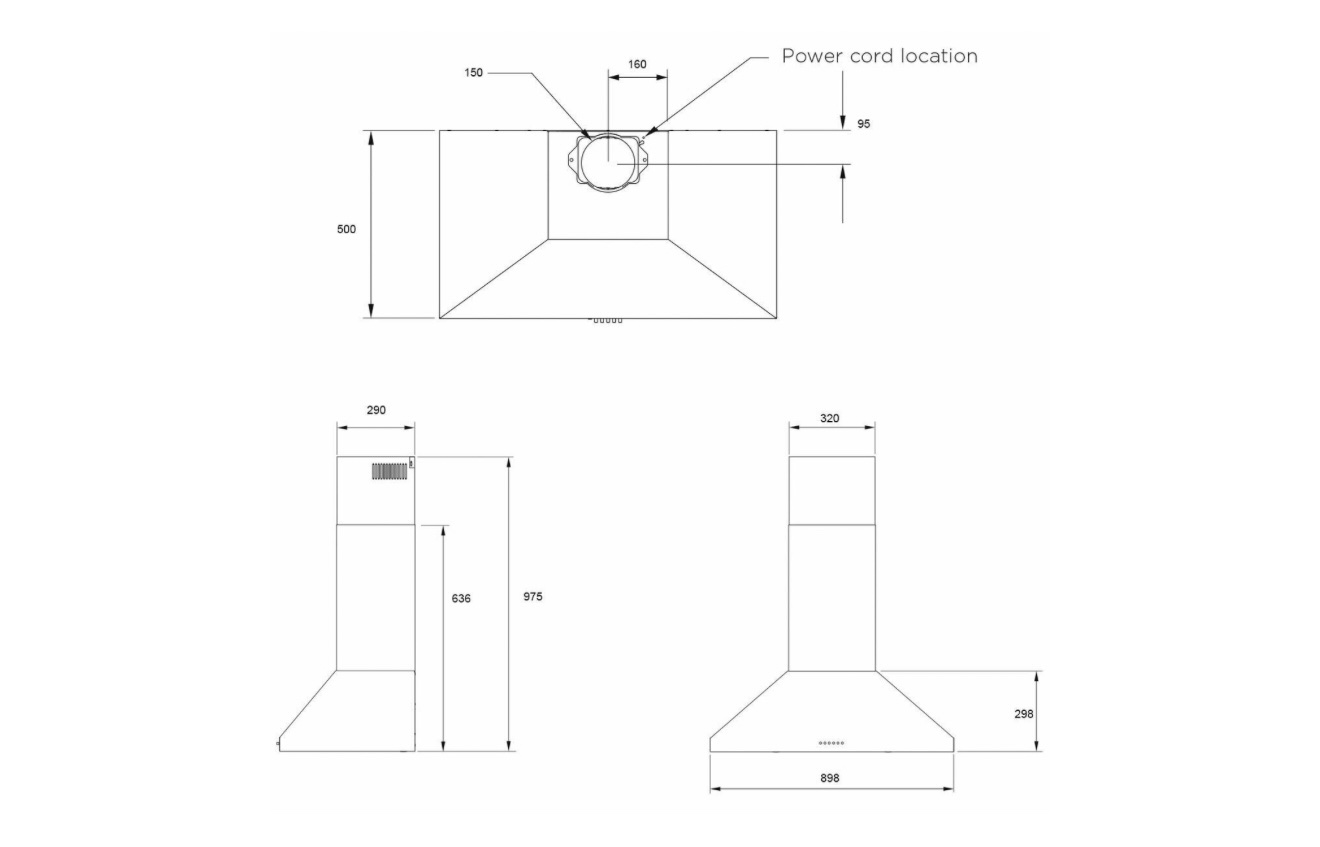

DIMENSIONS

KEY SPECIFICATIONS

Rangehood Type	Canopy
Model Number	HC90PCX1
Weight (kg)	26 kg
Depth (mm)	500 mm
Height (mm)	636 mm
Width (mm)	898 mm
Accessories included	3 x Mesh Filters, 2 x Flue Covers.
Finish Colour	Stainless Steel
Notes	This model can be ducted externally using the optional extra ducting kits available Online to add to your order. Recirculation Kits: If Recirculating these accessory Kits are available directly through the supplier’s spare parts division.
Finish Colour Description	Stainless Steel Body Finish
Rangehood Model Number	HC90PCX1
Installation Note	Wall Mounted Installation.

WARRANTY

Manufacturer Warranty	2 Years
Warranty Note	Parts & Labour
Use	Not intended or designed for commercial use.

AIR EXTRACTION

Max Air Capacity	780 m³/h
Number of fan speeds	3
Ducting size	150
Can be recirculated
Ducting location	Top

OTHER FEATURES

Features	Complementary Design:This wall chimney rangehood is designed to match the black Classic Freestanding Cooker in both colour and style, including stylish chrome touch buttons. Cleaner air: Odours can linger in the kitchen well after cooking is finished. With three fan speeds and a maximum airflow of 780m3/hr, this rangehood removes cooking odours effectively, as well as grease and steam while cooking. Intuitive controls: Classic-style chrome touch buttons are simple to use, giving you full control of your extraction. Simple to clean: Three stainless steel filters are easy to remove, and can be cleaned in the dishwasher or washed by hand in hot soapy water. Design quality: Made from quality stainless steel with an excellent finish and robust product design, this rangehood is both visually appealing and durable. Considered efficiency: The extraction rate ensures interior air and climate is not excessively removed to the outside, while LED lighting on the rangehood has been chosen for energy efficiency. Easy Installation: This wall chimney rangehood is the perfect partner to your Fisher & Paykel Cooktop or Freestanding Cooker. It can be either externally ducted or internally recirculated, for simple installation.
Super fast air extraction
Programmable timer
Control type	Push buttons
Light type	LED
Motor Type	Single Internal Motor
Clean filter indicator

ELECTRICAL CONNECTION

Type of connection	10A plug & lead
Connection requirements	This product requires a 10amp electrical connection. For more information, please contact Winning Services on 1300 020 020 or your electrician.

FILTERS

Filter material	Aluminum Mesh
Number of filters	3
Dishwasher safe filters

NOISE LEVEL

Highest Operating Noise	65 dB

OTHER

Primary Product Category	Rangehoods
Dishwasher safe parts
Filter	Yes
EAN	9415112501528

MANUALS & DOWNLOADS

HC90PCX1 – Fisher & Paykel – Installation Guide

HC90PCX1 – Fisher & Paykel – Specifications Sheet

HC90PCX1 – Fisher & Paykel – User Manual
