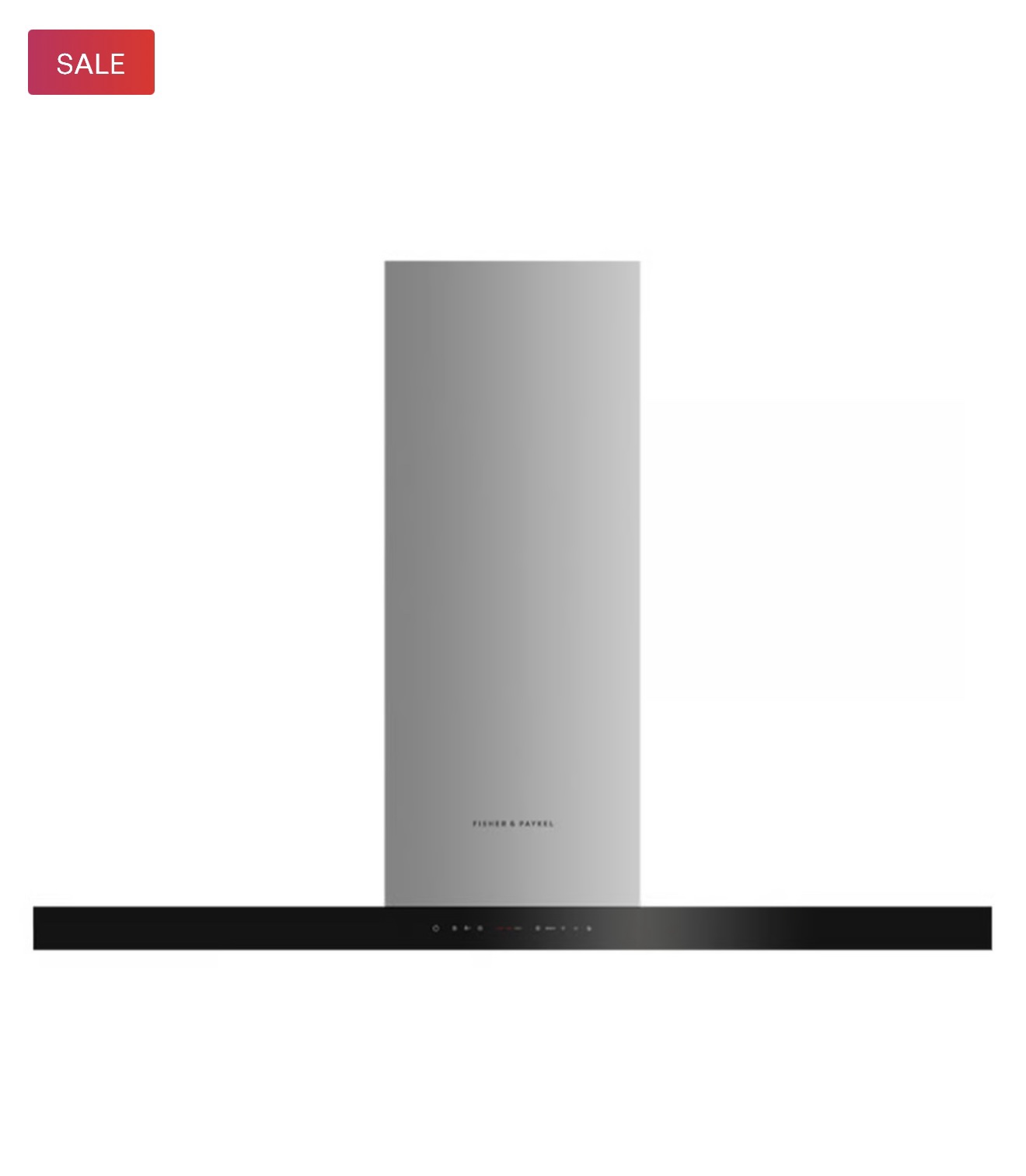

FISHER & PAYKEL 120CM SERIES 7 BOX CHIMNEY WALL RANGEHOOD HC120DCXB4

FISHER & PAYKEL HC120DCXB4 | SERIES 7 120CM WALL RANGEHOOD STAINLESS STEEL & GLASS

This Contemporary style rangehood extracts steam, grease and cooking odours quietly and efficiently.

• • With three fan speeds plus boost, select the perfect extraction rate for your cooking
• • Powerful maximum air movement of 780m³/hr
• • Energy-efficient LED lighting to illuminate your cooking surface
• • Wi-Fi enabled for notifications through the SmartHQ™ app


EFFECTIVE EXTRACTION

Featuring perimeter extraction, four fan speeds, and a boost function, this range hood provides powerful extraction to quickly remove odors and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.

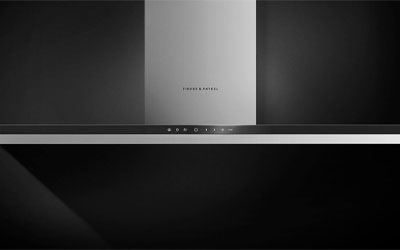

SIMPLE CONTROLS

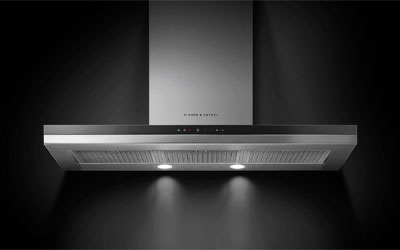

The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Rangehood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.



EASY CLEANING

Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your rangehood.



EASY INSTALLATION

This rangehood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

SPECIFICATIONS

• GLOBAL

  • Model Number: HC120DCXB4
  • Rangehood Type: Canopy

• GENERAL

  • Colour: Stainless Steel
  • Control Type: Touch
  • Material: Stainless Steel and Glass

• FEATURES

  • Boost Function: Yes
  • Timer: Yes

• SIZE

  • Duct Diameter (mm): 150
  • Rangehood Size (cm): 120

• PERFORMANCE

  • Air Flow : 780m³/hr(M³/H)
  • Speed Levels: 3

• SAFETY FEATURES

  • Auto Shutoff: Yes
  • Dishwasher Safe: Yes

• LIGHTING FEATURES

  • Lighting Type: LED
  • Number Of Lights: 1

• FILTER INFORMATION

  • Filtration : Mesh
  • Number Of Filters: 4

• ENERGY SPECIFICATION/POWER

  • Motor Power (W): 248
  • Voltage (V): 220-240

• DIMENSIONS

  • Depth: 500mm
  • Height: 1035mm
  • Width: 1198mm

• IN THE BOX & WARRANTY

  • Warranty (Years): 2

MANUALS

• HC120DCXB4 – Specifications Sheet
